1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation

    Buy cheap 1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation from wholesalers

    Buy cheap 1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation from wholesalers
    • Buy cheap 1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation from wholesalers
    • Buy cheap 1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation from wholesalers

    1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation

    Ask Lasest Price
    Brand Name : Huahai laser
    Model Number : HB-FW500-F; HB-FW750-F;HB-FW1000-F
    Certification : CE FDA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/ Month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

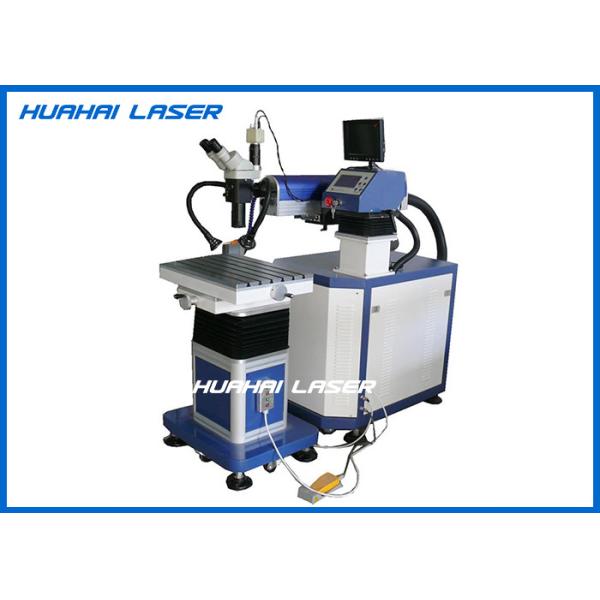

    1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation

    HUAHAI LASER YAG Laser Metal Welder For Auto parts Mould , All Kinds Metal Moulds

    (HB-FW500-F; HB-FW750-F;HB-FW1000-F)


    Applicable Materials of Continuous Fiber Laser Welding Machine:


    It is used in welding aluminum, copper, titanium, gold, silver,nickel, tin and the alloys. It can implement precision between the same metals and dissimilar metals.

    It has been widely used in aerospace equipments, shipbuilding, instruments, mechanical and electrical products, automobile manufacturing,eye glass frames, jewelry,accessories and other industries.


    Applicable materials and fields:


    This device not only serves as the special packaging equipment of battery production, but also can be used

    in the welding of metal materials, such as relay, sensor and various electronic components, etc.


    The shape of welding:


    point, circle, arc and square, etc.


    Parameters:


    Wavelength1064nm
    Pump sourcesDual Xe-lamp
    Max.power300W
    Max. single pulse energy60J
    Pulse width0.1~20.0ms
    Sequency frequency0~200Hz
    Welding spot size0.2~1.5mm
    Welding depth0.1~3.0mm
    Sequence welding15mm/s
    Observe systemCCD monitor
    PositioningRed light indication
    Cooling systemWater cooling
    Cooling power3P
    Figuration size1800mm*1000mm*2000mm
    Electricity requirement15kW,three phase
    Power supply requirement

    380V±10%,50Hz,40A


    Samples:


    1070nm Laser Mould Welding Welder Machine 200W Low Power Consumption Easy Operation
